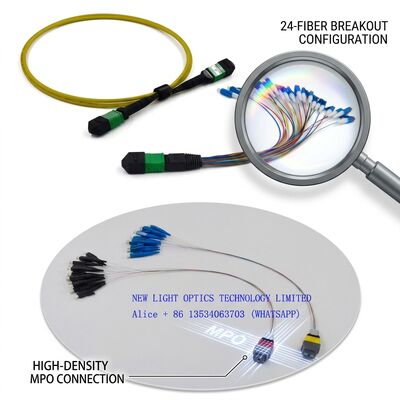

Ultra-Low Insertion Loss MPO MTP Patch Cord ≤0.35dB 3.0mm LSZH 12-Fiber for 10G 40G 100G High-Bandwidth Data Centers

브랜드 이름:	NEW LIGHT
모델 번호:	MPO
모크:	100개
가격:	0.1~100
포장에 대한 세부 사항:	오프 가방 + 카톤 박스
지불 조건:	T/T, 서부 동맹, MoneyGram, 페이팔

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 선전

인증:

ISO 9001, CE, RoHS

공급 능력:

12000 PCS/DAY

강조하다:

Ultra-Low Insertion Loss MPO MTP Patch Cord

12-Fiber MPO MTP Patch Cord for Data Centers

LSZH MPO MTP Patch Cord with 0.35dB

제품 설명

Ultra-Low Insertion Loss MPO MTP Patch Cord

New Light Optics presents its premium MPO MTP Patch Cord, engineered to deliver ultra-low insertion loss of ≤0.35dB and exceptional high-bandwidth performance for modern data center and telecom infrastructure. Available in 8-fiber and 12-fiber configurations with 3.0mm LSZH round cable, this patch cord supports OM3/OM4 multimode transmission for 10G, 40G, and 100G parallel optic interconnects.

Key Features

Ultra-Low Insertion Loss ≤0.35dB: Maximizes optical power budget across the link, reducing the need for signal amplification and enabling longer reach without compromising performance
High-Bandwidth OM3/OM4 Multimode: Supports 10G, 40G, and 100G parallel optic transmission for cloud computing, AI/ML workloads, and enterprise virtualization environments
3.0mm LSZH Round Jacket: Low smoke zero halogen cable jacket provides mechanical durability and flame retardancy, fully compliant with IEC 60332-1, IEC 60754, and IEC 61034 standards for indoor installations
MTP/MPO Precision Connectors: Factory-terminated with high-precision ceramic ferrules, achieving repeatable low-loss connections across hundreds of mating cycles with minimal variation
100% End-Face Tested: Every patch cord undergoes IL, RL, 3D interferometer, and visual inspection with detailed test reports available upon customer request
Flexible Fiber Count and Polarity: Available in 8-fiber and 12-fiber options with Type A, Type B, and Type C polarity configurations to match any network topology design
Rapid OEM/ODM Customization: Custom lengths, connector genders, fiber counts, cable colors, and private label branding supported through full OEM/ODM service with 5-7 day lead time

Technical Specifications

Parameter	Specification
Connector Type	MTP/MPO (Male/Female, with or without Guide Pins)
Mode Type	MM (OM3/OM4) / SM (OS2)
Insertion Loss	≤0.35dB (Standard); ≤0.20dB (Premium Option)
Return Loss	APC ≥65dB; PC ≥55dB
Cable Diameter	3.0mm (Standard) / 0.9mm (Compact)
Cable Length	5m / 10m / 15m (Custom Lengths up to 100m Available)
Fiber Count	8 Fibers / 12 Fibers
Jacket Material	LSZH (Low Smoke Zero Halogen)
Polarity Options	Type A (Straight) / Type B (Crossed) / Type C (Pair-Flipped)
Operating Temperature	-20°C to +70°C
Durability	≥500 Mating Cycles
Certifications	ISO 9001, CE, RoHS

Applications

The MPO MTP patch cord is purpose-built for high-density fiber environments where signal integrity and space efficiency are both critical requirements. Typical deployments include data center spine-leaf fabric interconnects, 40G/100G SR4 parallel optic links, telecom central office cross-connects, enterprise campus backbone aggregation, and SAN fabric extension. The 3.0mm LSZH jacket is certified for indoor cable tray, raised floor, and plenum-adjacent routing, ensuring compliance with local building and fire codes across North America, Europe, and the Middle East.

Packaging and Quality Assurance

Each MPO MTP patch cord is individually packaged in an OPP bag and placed in a protective carton box to prevent connector damage during transit and storage. All products undergo 100% testing before shipment: insertion loss verification, return loss measurement, 3D interferometer end-face geometry inspection, and visual defect screening. Test reports are systematically archived and available upon customer request for traceability and compliance documentation.
