제품 상세 정보:
|
| 생산품명: | 단단한 버퍼링된 광섬유 케이블 | 연결관 유형: | SC는 (통조림으로 만듭니다 ST, FC, LC, MPO, MTRJ,가 MU가) 입니다 |
|---|---|---|---|
| 형태 유형: | MM, SM | 케이블 색: | 황색 |
| 케이블 직경: | 0.9mm | 케이블 길이: | 1 Ｍ (맞춤화될 수 있습니다) |
| 삽입 손실: | ≤ 0.3 dB | 복귀 손실: | ≥ 40dB |
| 배달 시간: | 2-7 작업 일 | 지불조건: | 30%는 사전에 침적됩니다, 70% 균형이 배달 전에 지불했습니다 |
| 하이 라이트: | 1m Tight Buffered Optical Cable,LSZH Tight Buffered Optical Cable,FTTX SC Simplex Optic Pigtail |
||

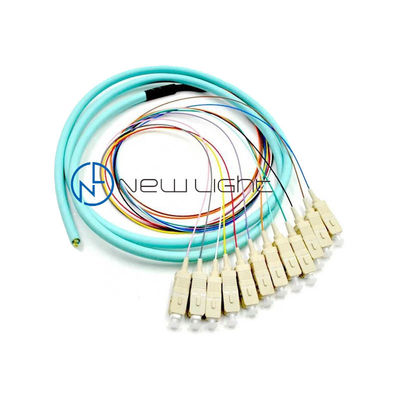

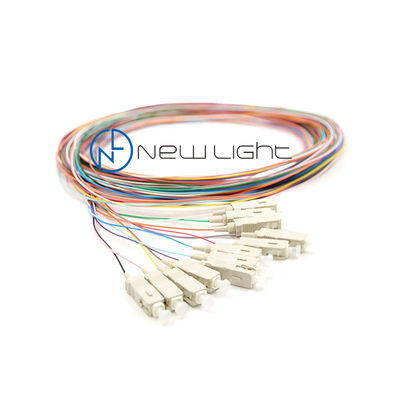

Multimode 12colors SC simplex tight buffered fiber optic cable
Tight buffered cables are perfect for indoor use and medium length LAN/WAN connections as they are the sturdier option. Another advantage to tight buffered cables is that they are much easier to install as there is no gel to clean up afterwards and they do not require a fan out-kit for splicing or termination as you can crimp connectors directly to each fibre.
Features:
Simplex and Duplex assemblies available
PC, UPC polishing available
Loopback available
Customized lengths upon request
100% tested before shipping
PVC and LSZH outer sheath.
0.9mm, 2.0mm and 3.0mm cable size.
Hybrid patch cords are available upon request
Fan-out available (Ribbon type / bundle type)
Applications:
Telecommunication networks
ODF of optical transmission systems
FTTX FTTH FTTD applications
Data transmission networks
Computer networks (Gigabit Ethernet, SoNet, etc. )
Interconnection of fiber optic transmission equipments
| Specification | S.M | M.M | |||||||||||||||||||||||||||||||||||||||||||||
| PC | UPC | APC | |||||||||||||||||||||||||||||||||||||||||||||
| Insertion Loss(dB) | <=0.30dB | <=0.20dB | <=0.20dB | <=0.30dB | |||||||||||||||||||||||||||||||||||||||||||
| Return Loss(dB) | >=50dB | >=55dB | >=60dB | - | |||||||||||||||||||||||||||||||||||||||||||
| Durability(1000 matings) | <=0.20dB | ||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -40~+85℃ | ||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -40~+85℃ | ||||||||||||||||||||||||||||||||||||||||||||||
| Cable Diameter(mm) | 0.9/2.0/3.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| Cable Length(m) | 1M, 2M, 3M, 5M, Customized
|
||||||||||||||||||||||||||||||||||||||||||||||

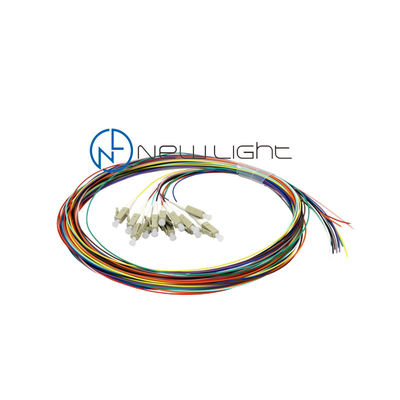

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
Multimode fiber (MMF) is a kind of optical fiber mostly used in communication over short distances, for example, inside a building or for the campus. Multimode fiber optic cable has a larger core, typically 50 or 62.5 microns that enables multiple light modes to be propagated. Because of this, more data can pass through the multimode fiber core at a given time. The maximum transmission distance for MMF cable is around 550m at the speed of 10Git/s. It can transmit farther at lower data rates, such as going about 2km at 100Mb/s.
Fiber Optic Pigtail Splicing: Easy and Fast Fiber Termination
The quality of fiber pigtail is typically high because the connectorized end is attached in the factory, making it more accurately than a field-terminated cables. It can be attached to optical fibers by fusion or mechanical splicing. Given the access to a fusion splicer, you can splice the pigtail right onto the cable in a minute or less, which greatly speeds the splicing and saves significant time and cost spent on field termination. While for mechanical fiber optic pigtail splicing, it precisely holds a fiber optic pigtail and fiber patch cord together, the joint could be temporary or permanent, enabling light to pass from one fiber to the other. Always ordering fiber pigtail assembly a few feet more than you’ll need. The extra slack allows for splicing errors to be corrected. Besides, selecting fiber pigtail assembly with reliable quality would made the splicing process way easier.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
