제품 상세 정보:
|
| 생산품명: | 케이블을 뛰어넘는 SC / APC 광학 섬유 땋아 늘인 머리 12 색 0.9 밀리미터 2 Ｍ 광학 섬유 | 연결관 유형: | SC는 (통조림으로 만듭니다 ST, FC, LC, MPO, MTRJ,가 MU가) 입니다 |
|---|---|---|---|
| 형태 유형: | 다 형태 | 케이블 색: | (당신의 요구에 따르면) 자주빛입니다 |
| 케이블 직경: | 0.9mm | 케이블 길이: | 1 Ｍ (맞춤화될 수 있습니다) |
| 삽입 손실: | ≤ 0.3 dB | 복귀 손실: | ≥ 40dB |
| 배달 시간: | 2-7 작업 일 | 지불조건: | 30%는 사전에 침적됩니다, 70% 균형이 배달 전에 지불했습니다 |
| 하이 라이트: | SC/UPC Loose Tube Pigtail,1m Loose Tube Pigtail,LSZH Single Mode Optical Fiber |
||

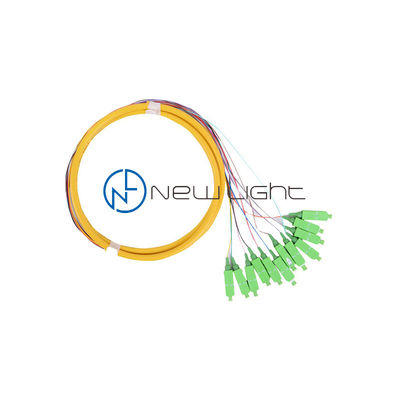

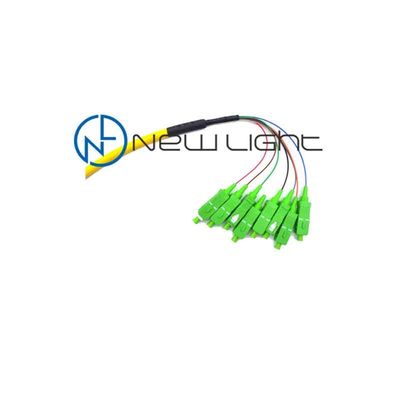

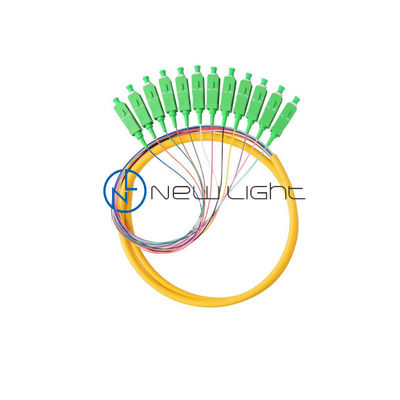

12color Fan Out single mode SC/UPC Loose Tube pigtail optical fiber
12color Fan Out single mode SC/UPC Loose Tube pigtail optical fiber is a single, short, usually loose or tight-buffered, optical fiber that boasts having an optical connector previously installed on one end and a length of exposed fiber at the other, which basically means it only has one connector on one end of the cable.
The end of the pigtail is stripped and then fusion spliced to a single fiber of a multi-fiber trunk. The pigtails are then spliced to each fiber in the trunk which ultimately "breaks out" the multi-fiber cable into the fibers that compose it for connection to the end equipment.
Pigtails can have either male or female connectors. Male connectors can be directly plugged into an optical transceiver whilst female connectors can be mounted bay two and two in a patch panel. If in pairs doesn’t work for you, they can also be mounted in single-fiber solutions that offer the possibility of connecting them to endpoints or fiber runs that use patch fibers.
Features:
1. High-quality ferrules
2. Strict quality testing: Insertion Loss and Return Loss 100% tested
3. Compliant with Telcordia GR-326-CORE, IEC, REACH, ROHS standards
4. Various fiber types: OS2(9/125um), OM1(62.5/125um), OM2(50/125um), OM3 (50/125um), OM4(50/125um) and OM5(50/125um), all from YOFC and Corning
5. PVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen) jacket upon request
6. Available fiber cable OD: Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.8, Φ3.0, etc.
7. LC/SC/ST/FC/MPO/MTP/MTRJ/MU/DIN/D4/SMA and more connectors
8. We welcome custom cable order per your specific request
Fusion splices:
Splicing two fiber optic cables together offers a permanent or semi-permanent connection between them. There does exist fiber optic splicing solutions that can be disconnected but this connecting method was not intended for connecting/disconnecting on a regular basis.
Fiber optic splicing is used when a more permanent solution is needed to fix a connection problem. For example, if you need to run a 10km length cable. Most fiber optic cables are made in maximum lengths of 5km so you´ll probably need to splice to cables together in order to achieve the desired run. In such cases, connectors are not an option.
Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length
| Product Name | 9/125 SC / PC Fiber Optic Pigtail , 1 M pigtail optical fiber 12 Colors 0.9mm |
| Modle Number | Pigtail |
| Diameter | 0.9/2.0/3.0 |
| Connector | SC/LC/FC/ST/MPO |
| Cable length | 1.2.3...Customized |
| Polishing | yes,plished |
| Material | LSZH/PVC |
| Form of sale | OEM/ODM |
| Use | Connect the optical transmitter, receiver, and the terminal box. |
| Custom Design | Welcome |
| Sample Lead Time | 1-3days |
| Certificate | CE,ROHS |
| Advantage | Low IL,High RL |
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC/UPC | APC | PC | PC/UPC | PC | PC/UPC | PC | PC | APC | |||||
| Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | |||
| Return loss | dB | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 55 | ≥ 75 | |||
| Operating wavelength | nm | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | |||||
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ||||||||
| Operating temperature | -40~75 | -40~75 | -40~75 | -40~75 | |||||||||
| Storage temperature | -45~85 | -45~85 | -45~85 | -45~85 | |||||||||
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0 | ||||||||
Application
A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.
1.Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km
.
3.What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Payment term and delivery
1. Payment : T/T , L/C , Paypal , Westen Union , Moneygram
2. 30% deposit in advance , 70% balance paid before delivery .
3. Package : internatinal standard package ( OPP bag + Carton Box )
4. Delivery time : 2-7 working days ( according to your quantity )after received payment .
5. Warranty : 3 year (after delivery ) .
6. Shipping method : BY air ( DHL , TNT , UPS ,Fedex ) , By sea (according to your requirements ).
